Crystal Industrial retractable injection quills are designed to provide a more consistent and quick dispersal of injected chemicals into the center stream of a process pipeline. This avoids corrosive liquids from sticking to the sides of the pipe.
Our injection quills are offered in a range of materials and pressure ranges. Pressure and temperature ranges vary from 150 to 3000 psi and 100 °F (37 °C) and 750 °F (400 °C). The crack pressure on the RQ series of injection quills is 20 psi.
.png)

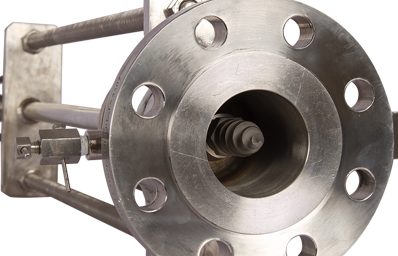

Crystal Industrial retractable injection quills are designed to provide a more consistent and quick dispersal of injected chemicals into the center stream of a process pipeline. This avoids corrosive liquids from sticking to the sides of the pipe.
Our injection quills are offered in a range of materials and pressure ranges. Pressure and temperature ranges vary from 150 to 900 psi and 100 °F (37 °C) and 750 °F (400 °C). The crack pressure on the RQ series of injection quills is 20 psi.

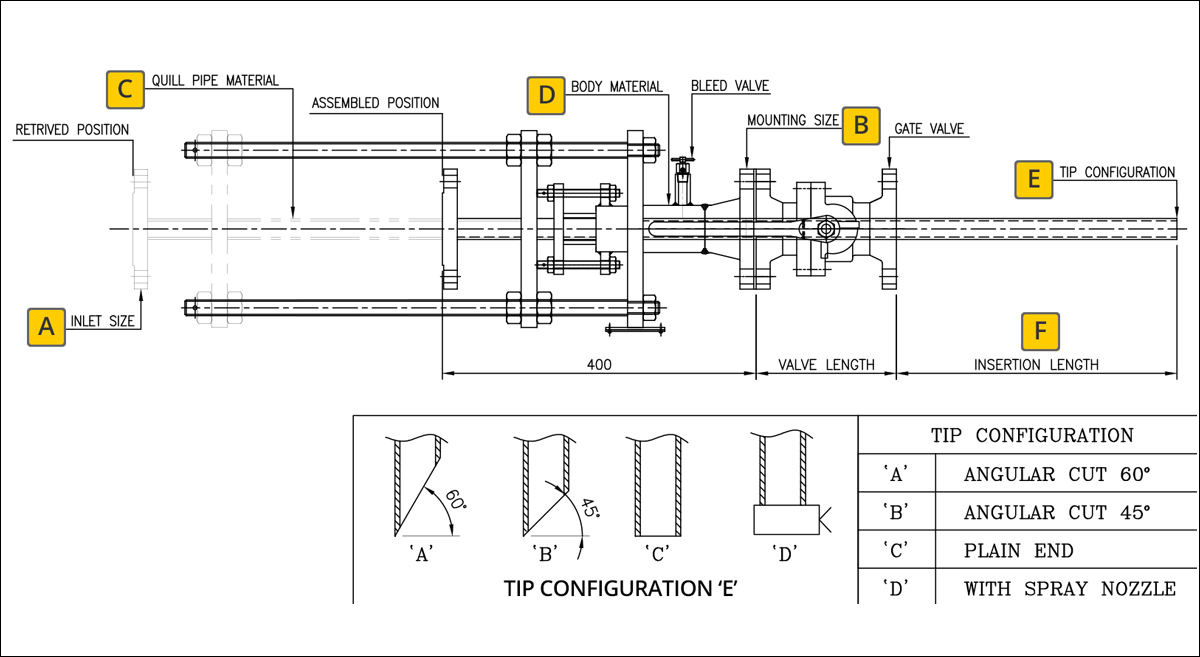

| MODEL NO. |
INLET SIZE (A) |
MOUNTING SIZE (B) |
QUILL PIPE MATERIAL (C) |
VALVE/BODY MATERIAL (D) |
TIP CONFIGURATION (E) |
INSERTION LENGTH (F) |
EQUIPMENT TESTING |
MATERIAL TESTING |
|---|---|---|---|---|---|---|---|---|
| RQ-150 | 1/2" - 2" | 1 1/2" -3" | CLIENT TO SPECIFY | CLIENT TO SPECIFY | CLIENT TO SPECIFY | CLIENT TO SPECIFY | HYDRO TEST | NACE 0175 |
| RQ-300 | 1/2" - 2" | 1 1/2" -3" | PICKLING & PASSIVATION | HIC | ||||
| RQ-600 | 1/2" - 2" | 1 1/2" -3" | PMI TEST | IMPACT TEST | ||||
| RQ-900 | 1/2" - 2" | 1 1/2" -3" | LIQUID PENETRANT TEST | IGC | ||||
| RADIOGRAPHIC TEST | ||||||||
| ULTRASONIC TEST | ||||||||
| PNEUMATIC TEST | ||||||||
| HEAT TREATMENT |
