Crystal Industrial's Flareweld Access Fittings are the most popular type of corrosion fitting mounting configuration. We are one of the most proven manufacturers and exporters of the product.

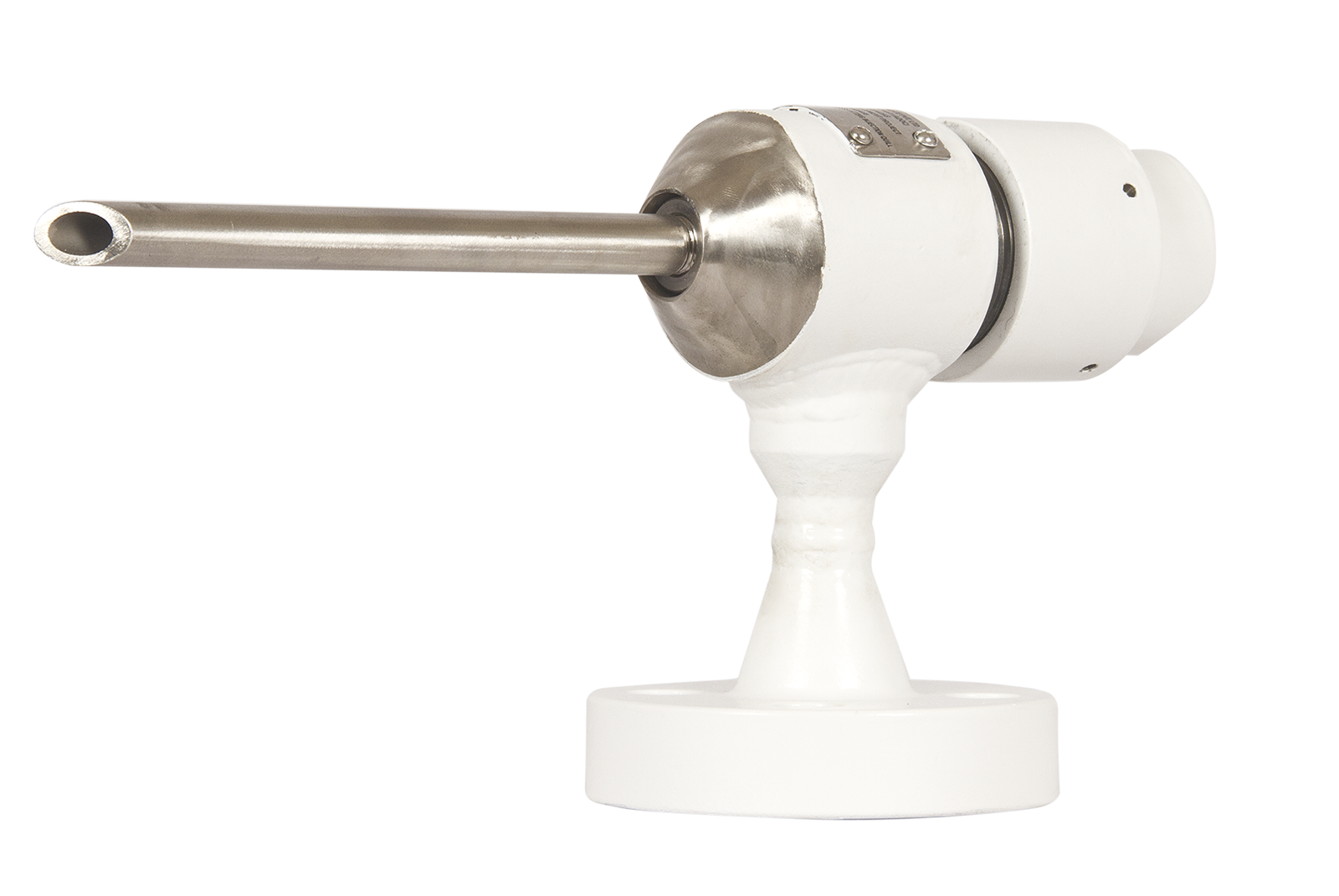

The model AFI Flarweld access fitting body is designed to be welded directly onto the pipe or the vessel. The corrosion access fitting has a radius that matches the curvature of the pipe or the vessel, with a maximum weld gap of 1/16”
Crystal Industrial's Flareweld Access Fittings are the most popular type of corrosion fitting mounting configuration. We are one of the most proven manufacturers and exporters of the product.
The model AFI Flarweld access fitting body is designed to be welded directly onto the pipe or the vessel. The corrosion access fitting has a radius that matches the curvature of the pipe or the vessel, with a maximum weld gap of 1/16”

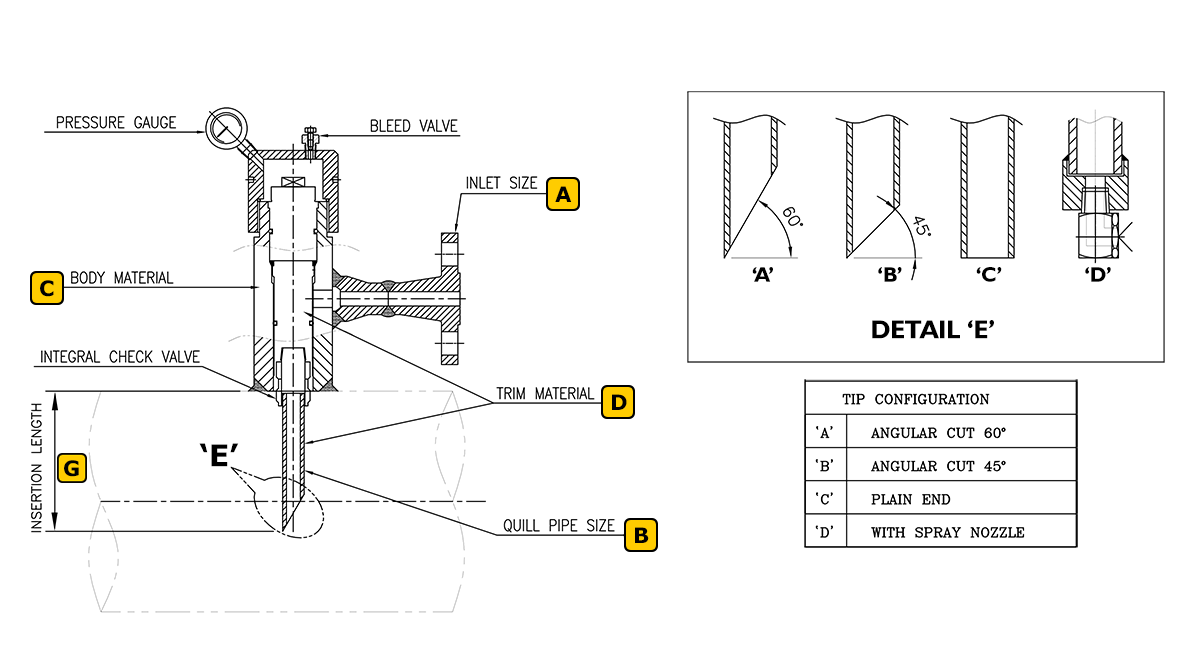

| MODEL
NO. |
INLET
SIZE (A) |
QUILL PIPE
SIZE (B) |
BODY
MATERIAL (C) |
TRIM
MATERIAL ( D) |
TIP
CONFIGURATION (E) |
INSERTION
LENGTH (F) |
EQUIPMENT
TESTING |
MATERIAL
TESTING |
|---|---|---|---|---|---|---|---|---|
| AFLI-150 | 1/2" TO 2" | 1/4"NB / 1/2"NB/ 3/4"NB | SPECIFY | SPECIFY | SPECIFY | SPECIFY | HYDRO TEST | NACE 0175 |
| AFLI-300 | 1/2" TO 2" | 1/4"NB / 1/2"NB/ 3/4"NB | PICKLING & PASSIVATION | HIC | ||||
| AFLI-600 | 1/2" TO 2" | 1/4"NB / 1/2"NB/ 3/4"NB | PMI TEST | IMPACT TEST | ||||
| AFLI-900 | 1/2" TO 2" | 1/4"NB / 1/2"NB/ 3/4"NB | LIQUID PENETRANT TEST | IGC | ||||
| AFLI-1500 | 1/2" TO 2" | 1/4"NB / 1/2"NB/ 3/4"NB | RADIOGRAPHIC TEST | SCC | ||||
| AFLI-2500 | 1/2" TO 2" | 1/4"NB / 1/2"NB/ 3/4"NB | ULTRASONIC TEST | |||||
| PNEUMATIC TEST | ||||||||
| HEAT TREATMENT |
