Coupons (Disc)

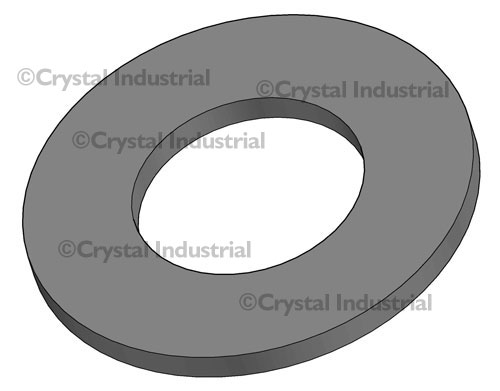

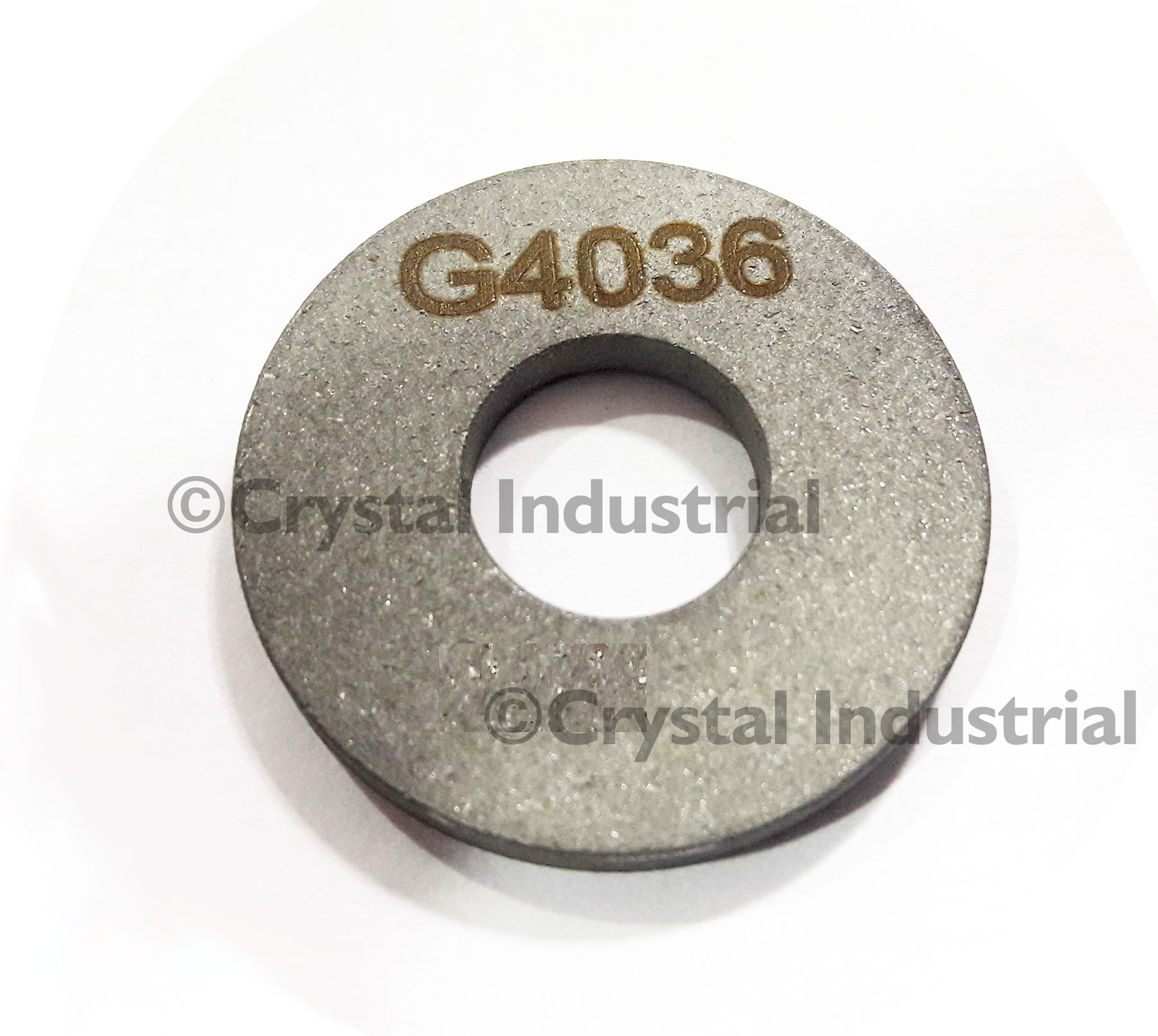

Circular coupons are most usually used along with holders that mount the coupon flush with the interior of the pipe or vessel. They come with a chamfered hole which allows recessed mounting accompanied by a stainless steel flathead screw. Flush disc coupons are usually used where pigging otherwise requires the taking out of intrusive-type coupon assemblies before the pigging operation; or alternatively where water-drop out at the bottom of the horizontal pipe runs causes corrosion problems. The disc coupon diameter is 1¼" (32 mm) with a thickness of 1/8" (3 mm). The insulation and the mounting screw is provided along with the coupon holder.

Coupons (Disc)

Circular coupons are most usually used along with holders that mount the coupon flush with the interior of the pipe or vessel. They come with a chamfered hole which allows recessed mounting accompanied by a stainless steel flathead screw. Flush disc coupons are usually used where pigging otherwise requires the taking out of intrusive-type coupon assemblies before the pigging operation; or alternatively where water-drop out at the bottom of the horizontal pipe runs causes corrosion problems. The disc coupon diameter is 1¼" (32 mm) with a thickness of 1/8" (3 mm). The insulation and the mounting screw is provided along with the coupon holder.

Specifications

Sample part no. DCC-A-B
MODEL NO. SIZE (DIA X T) 'mm' (A) COUPON MATERIAL (B)

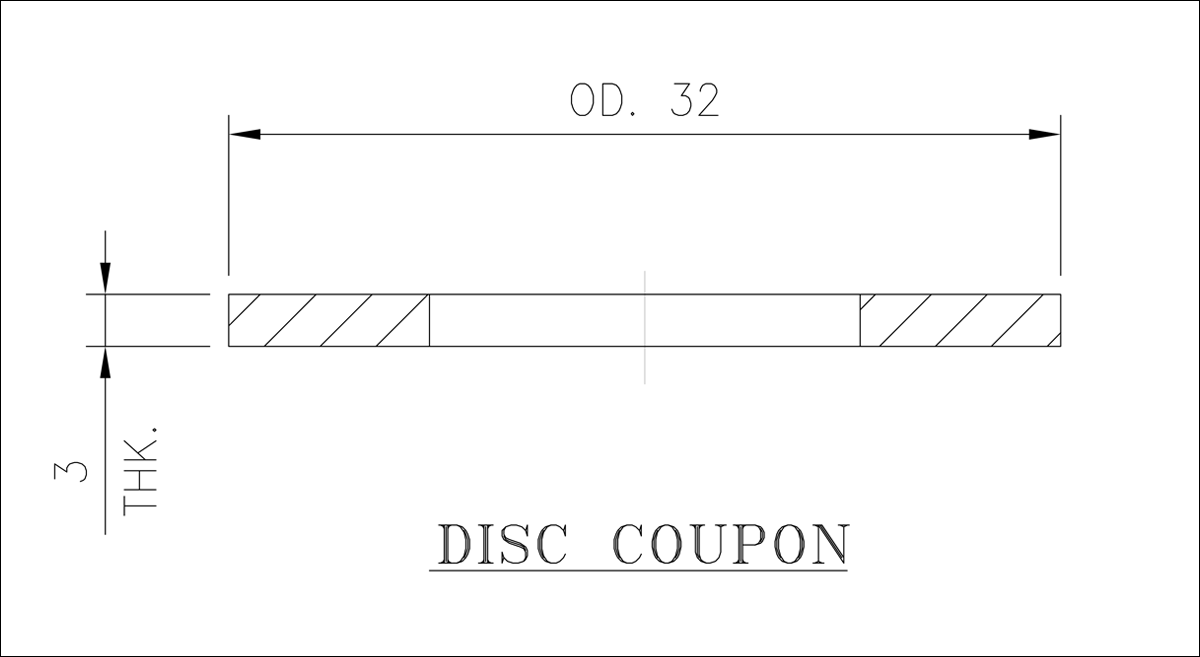

DCC DIA. 32 X 3 THK
A 106 GR.B
Duplex SS (UNS S31803)
API 5L GR. B
A516 GR.70
