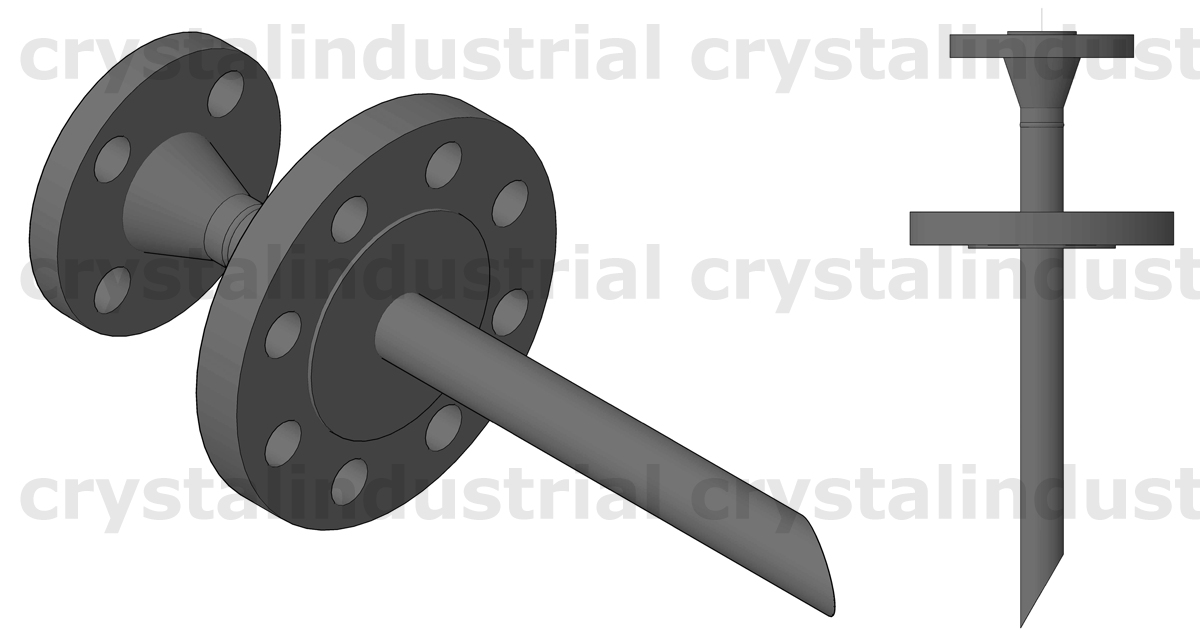

Crystal Industrial fixed injection quills are recommended for use in pipelines with a flow-rate speed of 40 feet for each second (12.192 meters for every second), or less.
Our fixed injection quills are built and planned in view of administrator security and guarantees that the quill can’t be incidentally pulled back or removed from the body. Approved and tested to AS4037 standards.
.png)
Crystal Industrial fixed injection quills are recommended for use in pipelines with a flow-rate speed of 40 feet for each second (12.192 meters for every second), or less.
The fixed injection quills are designed for security so that the quill can’t be incidentally pulled back or removed from the body.

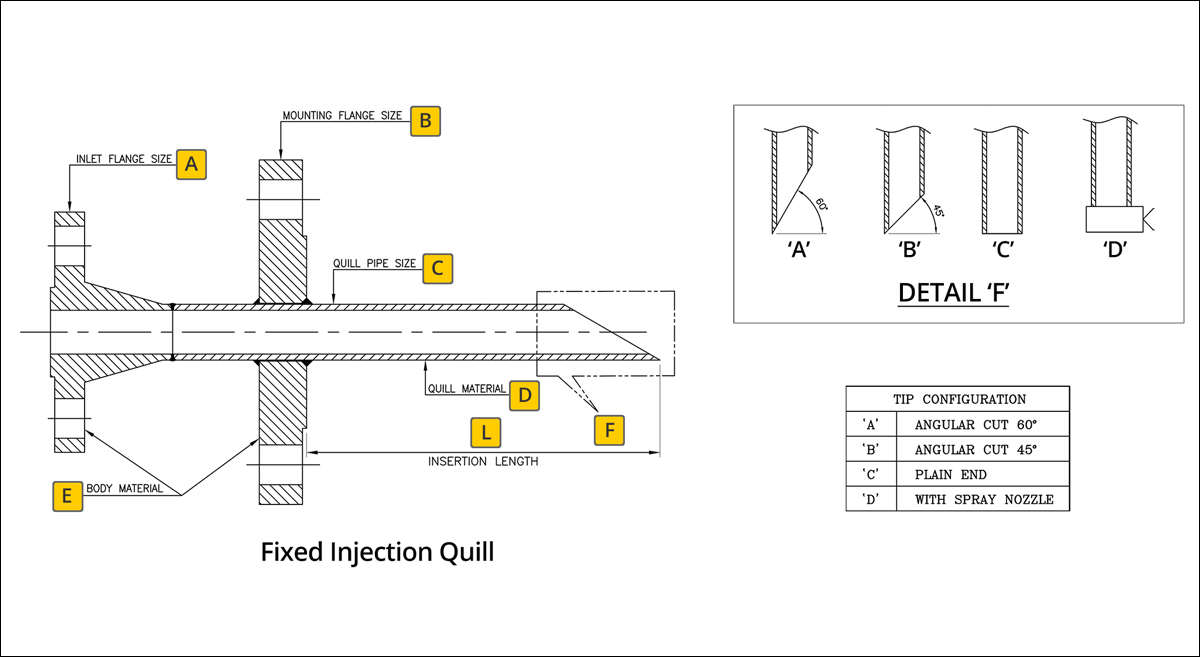

| MODEL NO. |
INLET FLANGE SIZE (A) |
MOUNTING FLANGE SIZE (B) |
QUILL SIZE (C) |
QUILL PIPE MATERIAL (D) |
FLANGE/BODY MATERIAL (E) |
TIP CONFIGURATION (F) |
INSERTION LENGTH (L) |
EQUIPMENT TESTING |
MATERIAL TESTING |
|---|---|---|---|---|---|---|---|---|---|
| FQ-150 | 1/2" - 6" | 1 1/2" - 24" | 1 1/2" - 6" | CLIENT TO SPECIFY | CLIENT TO SPECIFY | CLIENT TO SPECIFY | CLIENT TO SPECIFY | ||
| FQ-300 | 1/2" - 6" | 1 1/2" - 24" | 1 1/2" - 6" | HYDRO TEST | NACE 0175 | ||||
| FQ-600 | 1/2" - 6" | 1 1/2" - 24" | 1 1/2" - 6" | PICKLING & PASSIVATION | HIC | ||||
| FQ-900 | 1/2" - 6" | 1 1/2" - 24" | 1 1/2" - 6" | PMI TEST | IMPACT TEST | ||||
| FQ-1500 | 1/2" - 6" | 1 1/2" - 24" | 1 1/2" - 6" | LIQUID PENETRANT TEST | IGC | ||||
| FQ-2500 | 1/2" - 6" | 1 1/2" - 24" | 1 1/2" - 6" | RADIOGRAPHIC TEST | |||||
| - | - | - | - | ULTRASONIC TEST | |||||
| - | - | - | - | PNEUMATIC TEST | |||||
| - | - | - | - | HEAT TREATMENT |
